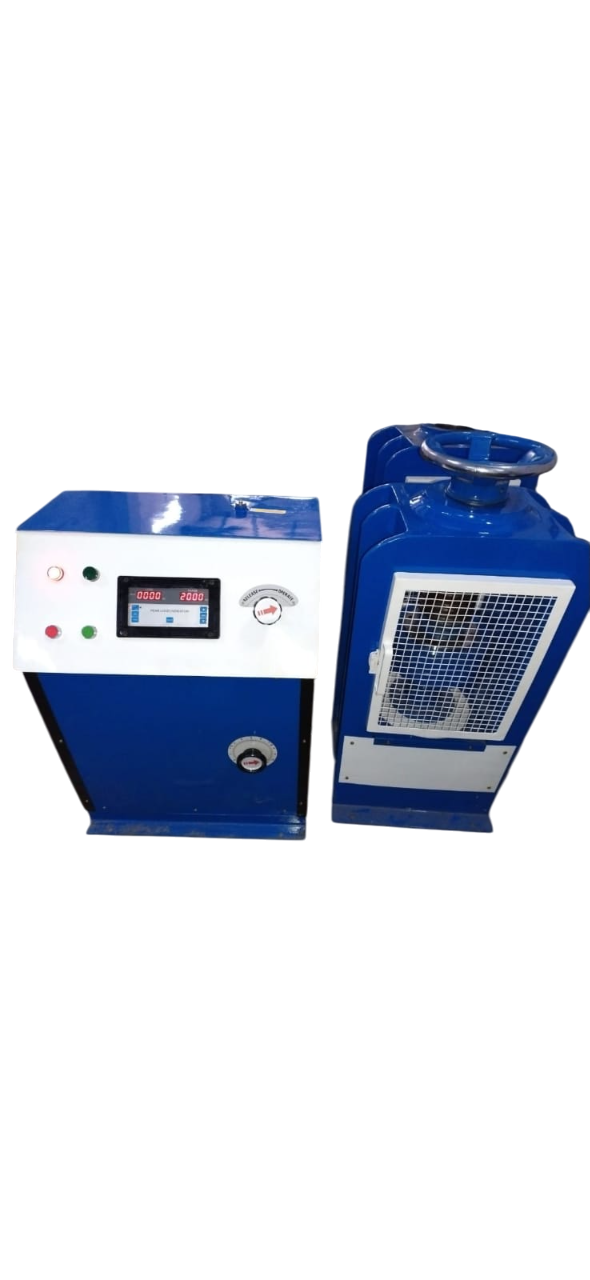

A semi-automatic channel-type compression testing machine typically has a capacity of 1000 kN or more, with a semi-automatic control mode

• Frame type: Channel-based or channel construction for high lateral rigidity
• Automation: Semi-automatic
• Control mode: Hydraulic or PLC controlled
• Automation grade: Semi-Automatic
• Accuracy:


  $$
   to


  $$
• Power: 440 V, 3-phase, 50 Hz
• Motor power: 1 hp or 7.5 kW
• Material: Mild steel

• Capacity: 1000 kN (100 Ton) or more, up to 5000 kN
• Least Count: 1 kN or higher
• Load Measurement: Digital or analog hydraulic pressure gauge
• Maximum Pointer: Yes, on analog gauges

• Piston Stroke: 50mm or higher
• Specimen size: Accommodates 15 cm cubes and 15 cm diameter x 30 cm high cylinders
• Platen: Upper platen with a swivel arrangement for self-aligning action; lower platen with concentric grooves for centering
• Spacers/Fixtures: Provided to test smaller specimens

• Display Type: Digital or LCD display
• Display Size: 7 inches or more
• Connectivity: USB 2.0 and RS232 ports for data transfer and connectivity
